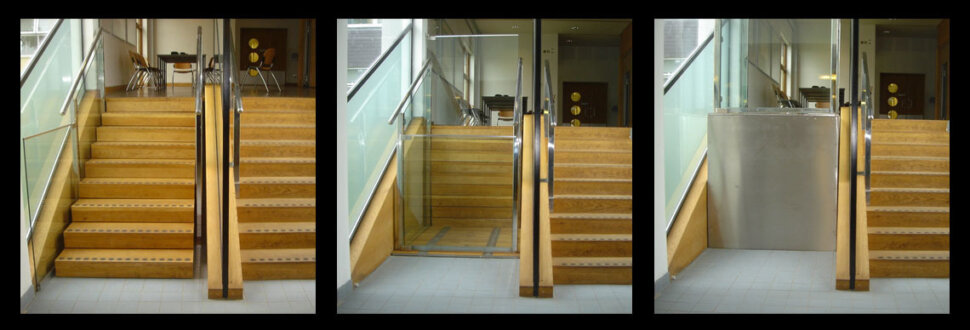

Cambridge Part M Lift has horizontally retracting stairs, an upper landing automatic gate, an on-lift automatic gate and handrails that rise with the lift. The on-lift gate and handrails fully enclose the user to a height of 1100mm therefore this lift is for seated and standing users.

To see our Cambridge Part M Lift videos please click here.

Specifications

Minimum horizontal pit length: 2800 mm
Minimum platform size: 1516 x 1031 mm
Maximum rise: 2999 mm
Minimum pit depth below lower landing: 625 mm + cladding & bedding

Features

The lift

The Cambridge Part M Lift uses an on-lift automatic gate and handrails that rise with the lift to fully enclose the user. Please see on lift barriers for more information.

The lift table can be made to accept any cladding material, the thicker the cladding the deeper the pit depth.

Nominal platform dimensions for this lift can vary due to site requirements, however, they are a minimum of:

1633 mm (l) x 1200 mm (w) x 0-2999 mm (h)

The maximum rise this lift can travel is typically restricted by the ceiling height, as the handrails that are fixed to the lift need extra space to rise into.

Please click on the lifting actuator link for more information on the mechanism used to raise and lower the Part M lift.
The stairs
The upper landing barrier
User type
System requirements

The Cambridge Part M Lift can come with either a solid stainless steel skirt below the lift (which increases the pit depth) or a collapsible set of bellows. Please see concealing the underside of the lift for more information.

For details on the power supply please see the lift power supply

For general details on the pit depth please see the lift pit

If the surrounding area presents a crush zone the lift table can be fitted with safety edges to detect an obstruction. Please see the crush hazards surrounding the moving lift for more information

Please see the Sesame stair lift controls for more information on the controls for this style of lift
Variations to the Cambridge Part M Lift

If you do not want to see the gates on the upper landing or on the lift you can use the Sesame Westminster Equality Act Lift. However, this system requires more pit depth.

If there is not enough pit space for the stairs to retract horizontally then the Seattle ADA Lift allows for the stairs to retract vertically.

If you do not want the handrails to rise with the lift but still need to fully enclose the user with barriers to a height of 1100 mm then the Sesame Westminster Equality Act Lift can be used

If it is a platform-only lift for standing and wheelchair users then the Windsor Mobility Lift may be the solution
