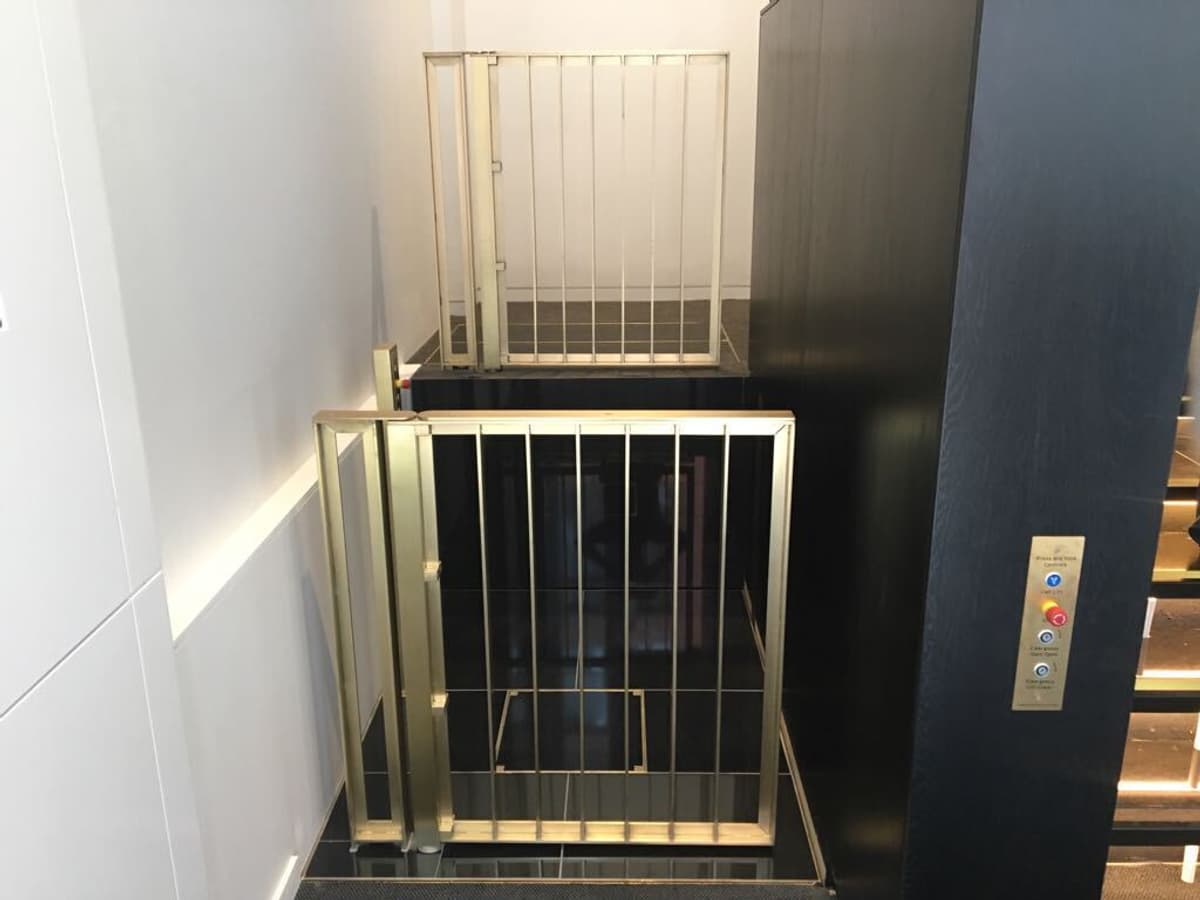

We manufactured and installed our Windsor Mobility Lift into a historic yet contemporary, tranquil and central residential area in London. This square of residences required reliable and state of the art disabled access for residents and visitors. Our Windsor Mobility Lift has an automatic gate at the upper landing with a fixed handrail and automatic gate on the rising platform.
The Windsor Mobility Lift has an automatic gate at the upper landing with a fixed handrail and automatic gate on the rising platform.
Minimum horizontal pit length
500 mm
Minimum platform size
1 633 mm x 1 065 mm
Maximum rise
2 999 mm
Minimum pit depth below lower landing
700 mm
Manufacturing Process
Finished Product
Features
The Lift
The Windsor Mobility Lift has handrails and a gate that sit 1100mm high allowing for standing and seated users. Please see On Lift Barriers for more information.
The lift table can be made to accept any cladding material, the thicker the cladding the deeper the pit depth.
Nominal Platform dimensions for this lift can vary due to site requirements. However, they are more than or equal to:
1633mm (l) x 1063mm (w) 0 – 2999mm (h)
Please see The Lifting Actuator link for more information on the mechanism used to raise and lower the mobility lift.
The Upper Landing Barrier
The Windsor Mobility Lift has an automatic gate at the upper landing to protect the fall hazard that is created when the stairs retract.
The spatial requirement for the gate can be adapted to suit the availability of the site.
Please see Upper Landing Barriers for more information.
The On-Lift Barrier
The Windsor Mobility Lifts automatic gate style can be specified by the client, so too can the surrounding handrails. Please see What barriers do I need on the Sesame chair lift? for more information.
System Requirements
The Windsor Mobility Lift can come with either bellows to reduce the pit depth or a solid stainless steel skirt below the lift. Please see concealing the underside of the lift for more information.
For details on the power supply please see the lift power supply.
For general details on the pit depth please see the lift pit.
If the surrounding area presents a crush zone the lift table can be fitted with safety edges to detect an obstruction. Please see Crush hazards surrounding the moving lift for more information.
Please see The Sesame Stair Lift Controls for more information on the controls for this style of lift.
Variations to the Windsor Mobility Lift
The permanently fixed on-lift handrails and gate can be replaced with rising barriers. These lower out of view and sit flush with lower landing level when not in use as seen here: Richmond Rising Platform Lift. This lift also shows a rising barrier at the upper landing as an alternative to the automatic gate.
If the pit depth is an issue the Sesame Jubilee Disabled Access Lift sits within a pit depth of 160mm + cladding thickness. This example also shows an option of a manual gate at the upper landing.
